Ceramic Fiber Module

SHENMEI WOOL® Normal Module (1050℃)
SHENMEI WOOL® Selected Module (1150℃)
SHENMEI WOOL® Standard Module (1260℃)
SHENMEI WOOL® High Pure Module (1260℃)
SHENMEI WOOL® Low Zr Module (1300℃)
SHENMEI WOOL® Normal Zr Module (1400℃)
OEM/OBM/ODM are Available.

Leave Message

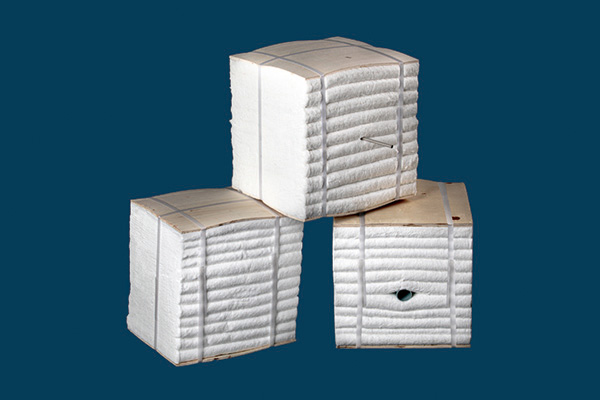

Ceramic Fiber Module Description

Ceramic fiber module is a new type of refractory furnace lining product that in order to simplify and speed up the construction of kiln and improve the integrity of furnace. lt can be fixed directly on the steel anchor of industrial kiln.

Ceramic Fiber Module Advantage

Low density, low heat capacity, greatly shorten the heating and cooling time of the kiln
Low thermal conductivity, effectively saving the fuel cost in the furnace
Good thermal shock resistance, excellent resistance to air erosion, good mechanical strength

Ceramic Fiber Module Specification

Description	SHENMEI WOOL® Normal Module	SHENMEI WOOL® Selected Module	SHENMEI WOOL® Standard Module	SHENMEI WOOL® High Pure Module	SHENMEI WOOL® Low Zr Module	SHENMEI WOOL® Normal Zr Module
Classification Temperature (ºC )	1050	1150	1260	1260	1300	1400
Working Temperature ≤ (ºC )	800	900	1000	1100	1150	1200
Linear Shrinkage (%)	800ºC x 24h ≤2	900ºC x 24h ≤2	1000ºC x 24h ≤2	1100ºC x 24h ≤2	1150ºC x 24h ≤2	1200ºC x 24h ≤2
Al₂O₃ (%)	39-41	42-43	43.5-44.5	44.5-46	39-41	36-39
Al₂O₃ + SiO₂ ≥ (%)	95	97	98	99	/	/
Al₂O₃ + SiO₂ +ZrO₂ ≥ (%)	/	/	/	/	98	99
ZrO₂ (%)	/	/	/	/	5-7	15-17
Fe₂O₃ ≤ (%)	1	0.8	0.5	0.1	0.3	0.1
Packaging	Inner coated woven bag, Pallet
Specification	Thickness(mm)	Length(mm)	Width(mm)	Density(kg/m³)
Specification	80-450	200-6000	150-640	160-240
Other customized specifications and packaging

Ceramic Fiber Module Application

Ceramic industry tunnel kiln, roller kiln, sanitary ware kiln
Steel industry heating furnace, annealing furnace, ladle cover
Heat insulation materials and furnace lining materials of Metallurgy, petrochemical, shipbuilding, non-ferrous metals and other industries
